3BBL Whisky Gin Vodka Copper Distilling Equipment

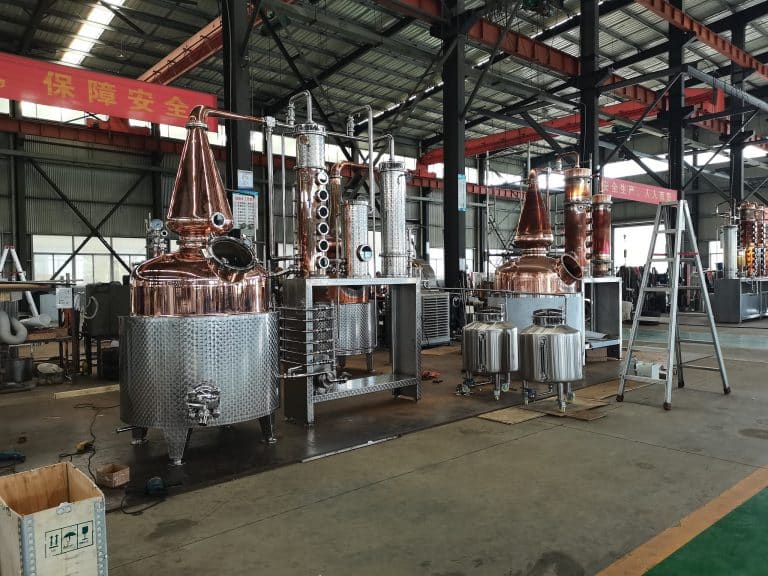

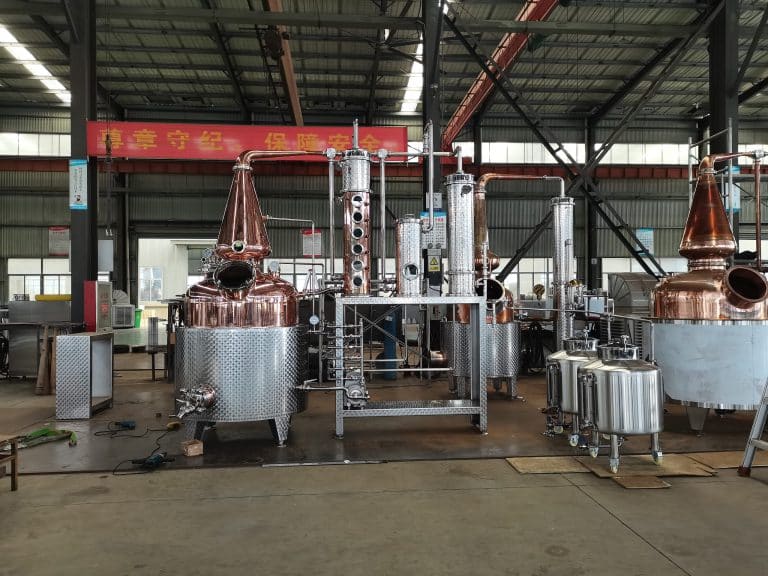

A 3BBL (barrel) copper distilling system is a relatively large setup suitable for craft distilleries producing a variety of spirits such as whisky, gin, and vodka.This single unit consists of a pot that is a combination of red copper ,glass and copper column,dephlegmator and condenser,heated by steam or electric.
The distiller is a single unit, engineered to meet and exceed the needs of start-up distilleries or be used as an advanced test still for established distilleries for whiskey, gin, fruit brandy, rum,wine spirit.

Product details

A 3BBL distillery equipment setup, much like the 200L setup but with a larger capacity, is designed for small to medium-scale distillation operations. This setup allows for increased production compared to smaller systems, making it suitable for craft distilleries or those aiming to produce a moderate quantity of spirits.

Configuration

1.Still Pot

Actual volume 432L, Working volume 3BBL

Inner pot: red copper T2, thickness: 3m

Dished head: red copper T2, thickness: 3m

Jacketed: SUS304, thickness: 4mm

Insulated: 50mm, PU

Stirring motor: explosion-proof mixer 0.37KW/46rpm(EX)

Outer shell: SUS304, thickness: 2mm

Temperature control: PT100

Heating method: 2*10KW electric heating rods

With glass manhole, CIP cleaning ball, safety valve, sight light, steam trap, etc.

2.Still Column

Material: red copper T2, thickness: 3mm

Red copper tubes, each tray has bubble caps, and with CIP cleaning balls, Drain valve, thermometer

3.Dephlegmator

Material: Red copper T2, thickness:3mm

With cooling water inlet and outlet

4.Gin Basket

Material: SUS304

Size: 4″

Features: you can put plant spices, fumigate scented wine, such as gin

5.Condenser

Material: SUS304, thickness: 3mm

Size: 6″, 900mm

With cooling water inlet and outlet

6.CIP Pump

Category: Sanitary centrifugal pump

Power: 0.75KW (explosion-proof)

Flow rate: 3T/H, head 24m

Working medium: water

Working temperature: 10-100℃

Features: Can clean the distillation kettle, copper head, column, gin basket

Material: SUS304, thickness: 2mm

7.Multifunctional lockers

Control Box

Material: SUS304

Sight light, motor, CIP pump

A 3bbl distillation equipment setup would allow for smaller-scale production, suitable for craft distilleries, experimental production, or for those interested in producing limited quantities of spirits. As with any distillation operation, regulatory compliance, safety measures, quality control, and adherence to specific spirit-making processes remain essential considerations regardless of the equipment size.
