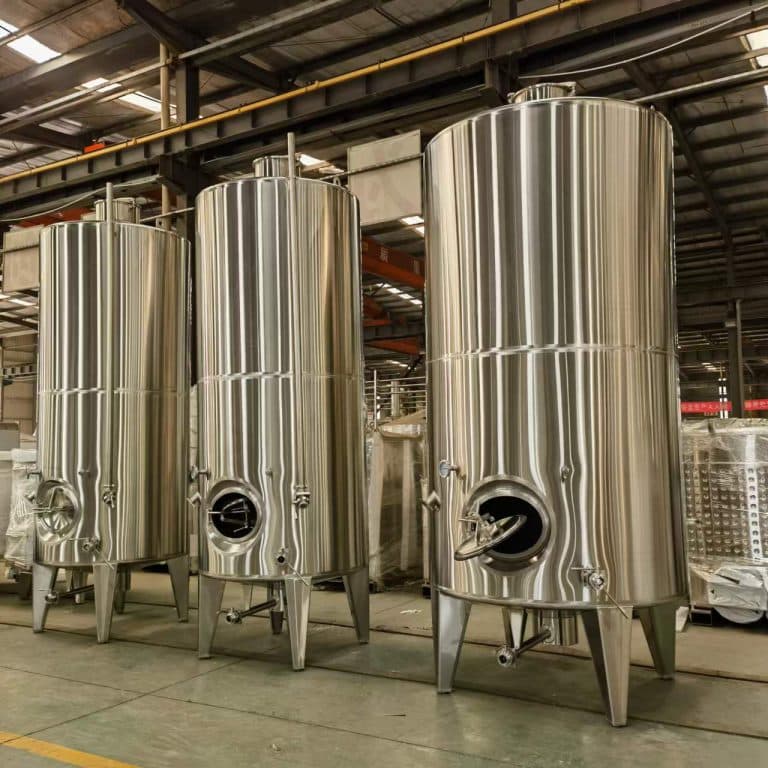

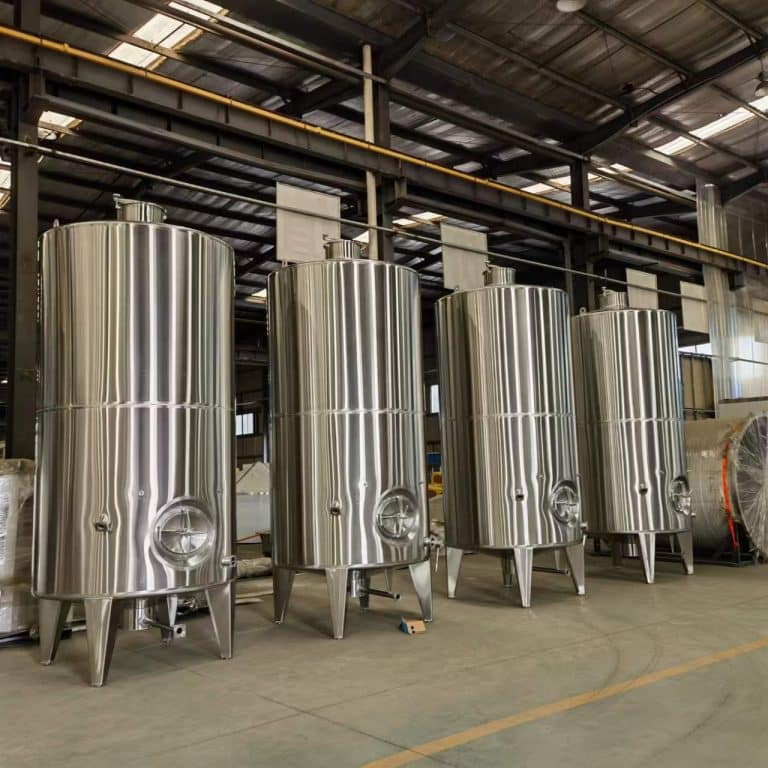

5000L Double Wall White Wine fermentation tanks

The double-wall design is especially valuable for wineries that require precise temperature control during fermentation, as it helps maintain a consistent and stable environment. This type of tank is often used in high-quality winemaking operations to ensure the best possible outcomes in terms of aroma, flavor, and overall wine quality.

Product details

5000L Double Wall White Wine Fermentation Tanks are specialized vessels used in winemaking for the fermentation and storage of wine. These tanks feature a double-wall construction, which provides both insulation and temperature control. Here are the key features and considerations for these tanks:

Double Wall Construction: The double-wall design consists of an inner tank (usually made of stainless steel) that holds the wine and an outer wall that forms an insulating layer. This insulation helps maintain a stable temperature within the tank, crucial for controlling the fermentation process.

Temperature Control: Temperature control is a critical aspect of winemaking. The double-wall construction allows for the integration of cooling and heating systems. Temperature control can be achieved through the circulation of temperature-controlled fluids or glycol within the space between the inner and outer walls. This ensures that the wine inside the tank stays within the desired temperature range.

Fermentation and Storage: These tanks are versatile and can be used for both the fermentation of grape juice and the storage of wine after fermentation. The temperature control capabilities make them suitable for various wine styles.

Shape: The shape of these tanks can vary, with common options being cylindrical or conical. The choice of shape can impact the extraction of flavors and tannins during fermentation and aging.

Racking and Pressing: After fermentation, the wine may need to be separated from the grape solids (skins, seeds, and stems) and transferred to another vessel for aging. The tank’s design should facilitate this process.

Double-wall wine fermentation tanks are ideal for wineries that require precise temperature control during the fermentation and aging processes. The insulation and temperature control features help winemakers maintain consistent and desired characteristics in the wine, which is particularly important for producing high-quality wines.

Advantage

White Wine fermenter is made of AISI 304 quality stainless steel, an updated to AISI 316L stainless steel is available for high-corrosion environments. Sanitary construction with 100% TIG welded joints and seams with sanitary interior polish. Thanks with cooling jacket and PU insulation, Double-wall wine fermentation tanks are ideal for wineries that require precise temperature control during the fermentation and aging processes.

Standard product features:

• Stainless steel 304/316L

• Conical centric top
• Sample valve
• CIP – rotary spray ball
• Wine outlet and drain outlet assembly
• Dimple cooling jacket
• Fully welded cladding

• With PU insulation

• Top Manhole Cover
• Side rectangular manway
• RTD Probe
• 2″ Butterfly valves

• Conical bottom

• 2″ PVRV

• Ladder Rack

• Bimetallicthermometer

• Liquid level tube.
