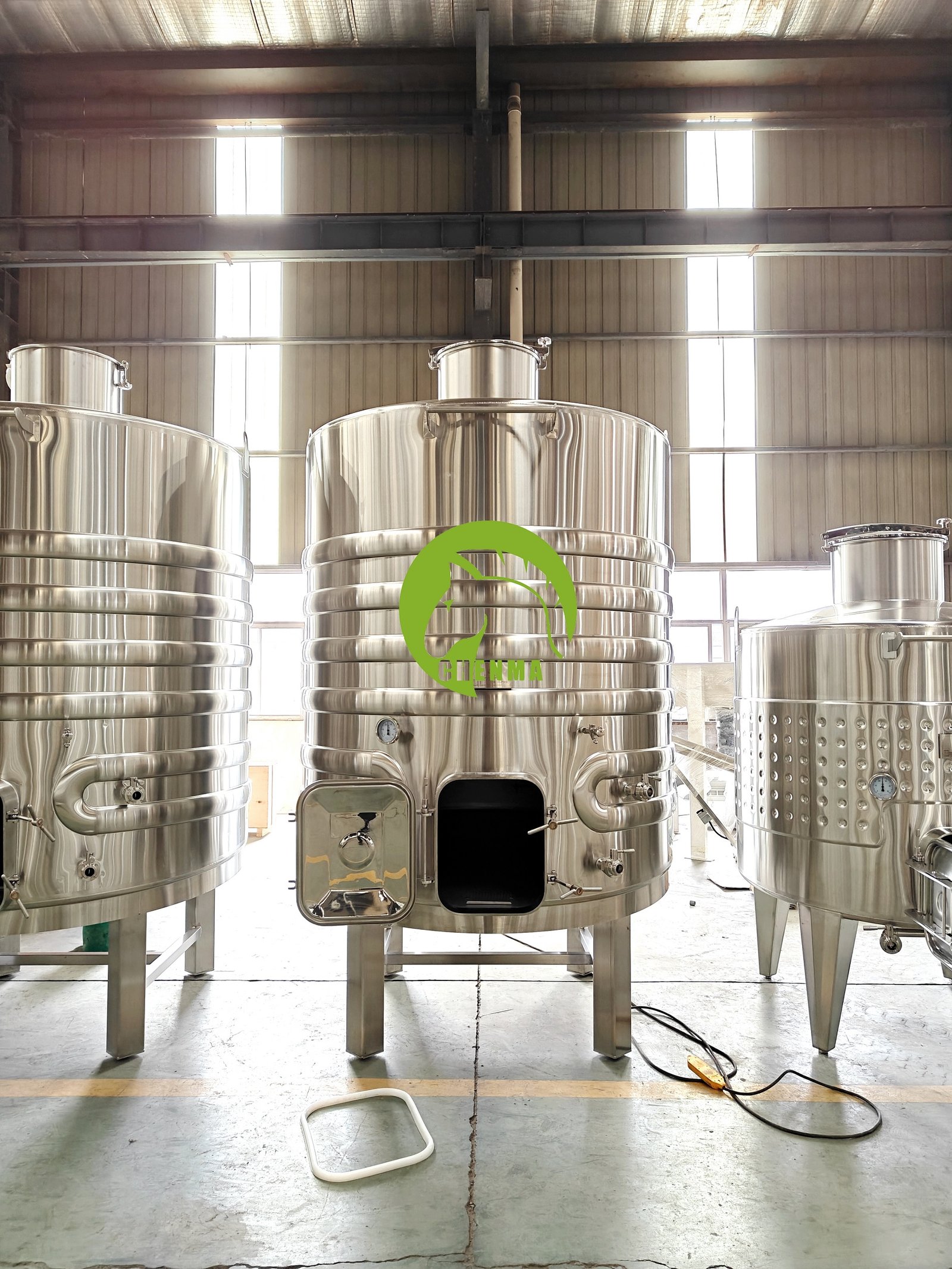

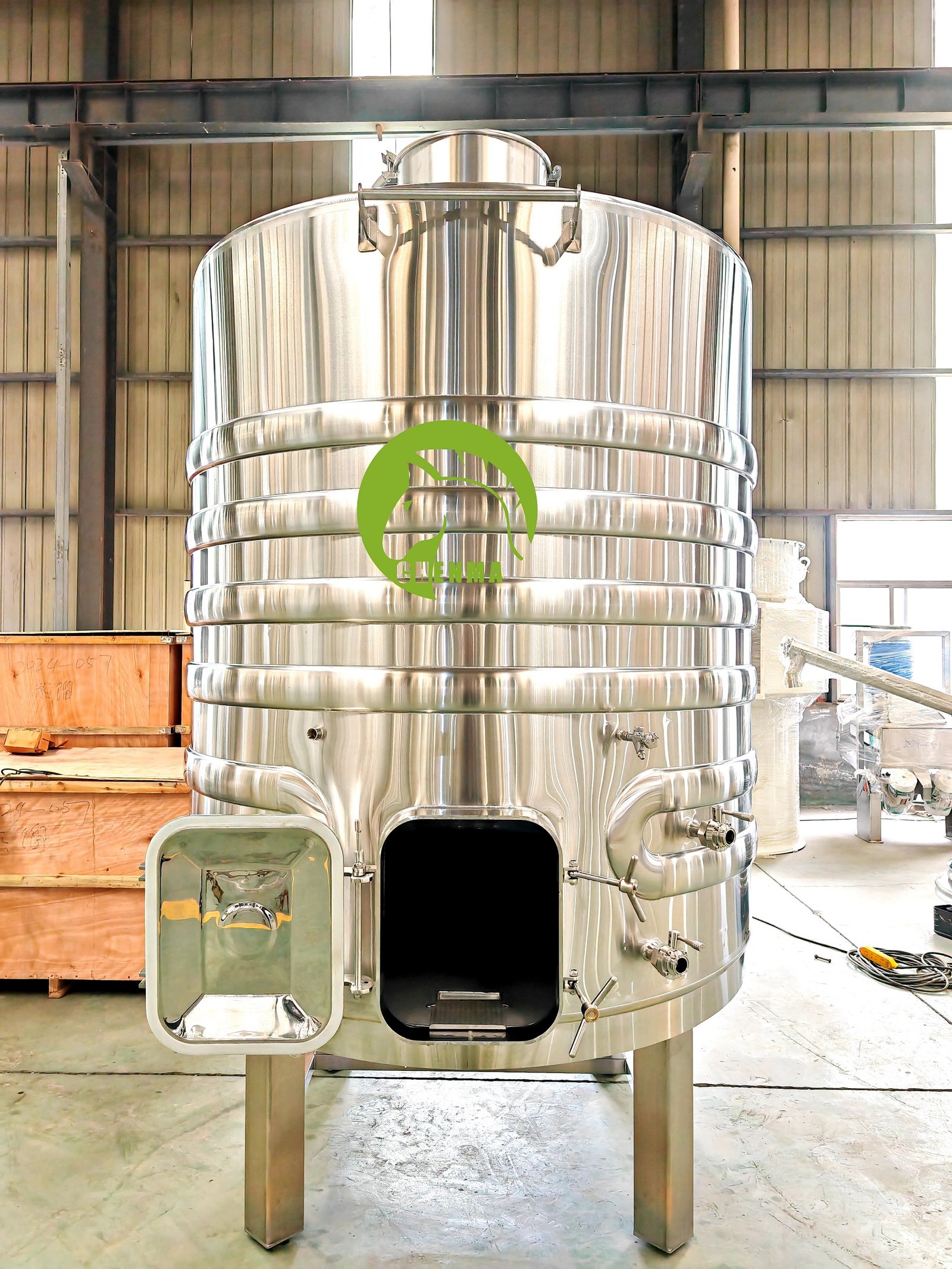

5000L Wine Fermenter Tank With Sprial Cooling Channel

5000L wine fermenter tank with spiral cooling channel is an advanced vessel used for fermenting wine. The spiral cooling channel system is designed to regulate the temperature during fermentation, ensuring optimal conditions for yeast activity and preventing overheating.

Product details

5000L wine fermenter tank

5000L wine fermenter tank with a spiral cooling channel is an advanced piece of winemaking equipment designed for temperature-controlled fermentation.This type of tank is ideal for professional wineries seeking large-scale production with precise fermentation control.

1.The specification for 5000L wine fermenter tank with sprial cooling channel as follows:

1).Sanitary Stainless steel 304, thickness of material:2mm;

2).Effective capacity:5000L;

3).Conical centric top;

4).Top Manhole Cover, the size for the top manhole is DN400mm;
5).0.75″Sample valve;
6).2″Wine outlet and drain outlet assembly;

7).2″racking valve;
8).Sprial cooling channel and thickness of cooling channel is 1.5mm;
9).Fully welded cladding;
10).Side rectangle manway, the size for the oval manway is 430mmx330mm;
11).PT100 temperature probe;
12).1’’Glycol inlet/outlet

13).2″ Breather valve;

14).Slope bottom;

15).CIP spray ball;

16).Bimetallic thermometer;

17).Stainless steel legs with screw assembly to adjust leg height.

2.Benefits of Wine Fermenter With Spiral Cooling Channel:

1)Efficient cooling: The spiral cooling system allows for faster and more efficient cooling compared to other methods like dimple plates.

2)Precise temperature control: Critical for winemaking, especially for fermenting different types of wines like whites, reds, or sparkling wines that require specific temperatures.

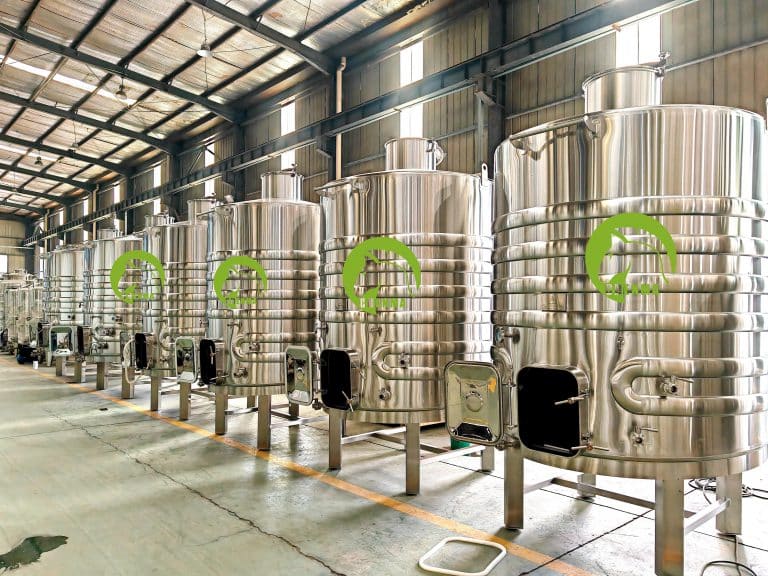

5000L wine fermenter tank with spiral cooling channel is an advanced piece of equipment used in winemaking. It allows precise temperature control during the fermentation process, which is crucial for maintaining the quality and flavor profile of the wine.This system is ideal for medium to large-scale wine producers who want to maintain precise control over the fermentation environment, ensuring consistent quality across batches.5000L wine fermenter tanks
