7000L Floating Lid Wine Tank

A 7000L floating lid wine tank is a specific type of storage vessel designed for winemaking. These tanks are typically made from stainless steel 304 and feature a floating lid mechanism that rests on the surface of the wine, adjusting its position as the level of wine changes due to fermentation or other processes.

Product details



Floating-lid tanks, as known as variable-capacity tanks or variable-volume tanks, are specialized vessels used for the fermentation and storage of wine, beer, and other beverages. These tanks are designed to accommodate varying volumes of liquid by utilizing an adjustable lid or floating device.

Advantage

Floating Lid tank with the floating lid and it can achieve an air-tight seal at any volume – making the variable capacity tank the perfect fit for small and growing wineries, Maneuvering the floating lid is easy thanks to the built-in lifting arm. A hand-operated winch is available as an option to make it even easier.

Standard product features:

•Stainless steel 304/316L

•Floating lid-with inflatable gasket and pump

•Lift arm
• Sample valve
• CIP – rotary spray ball
• Wine outlet and drain outlet assembly
• Dimple cooling jacket
• Fully welded cladding
• Side square manway
• RTD Probe
• 2″ Butterfly valves

2″ PVRV

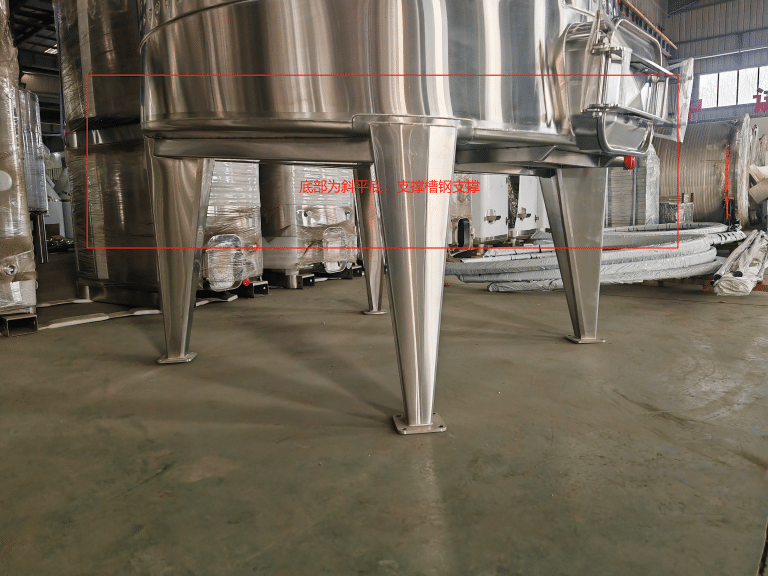

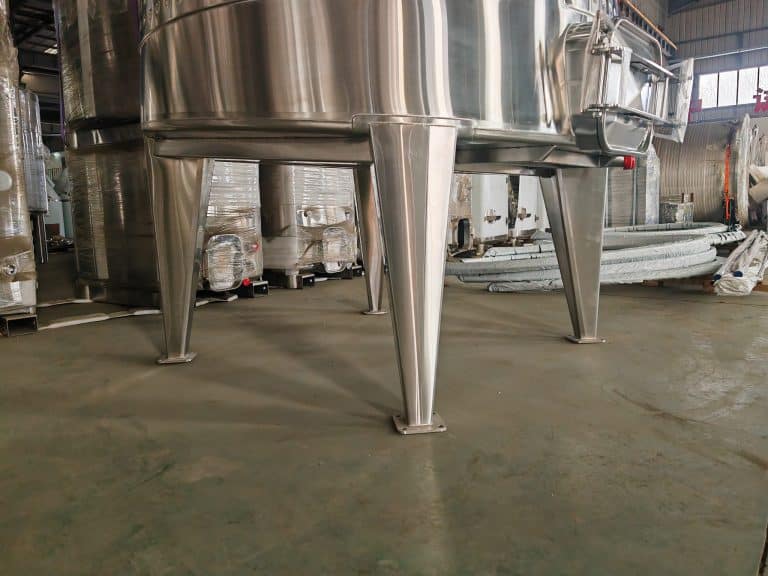

•Inclind bottom and degree of inclind for 5degree.

•Bimetallicthermometer.
