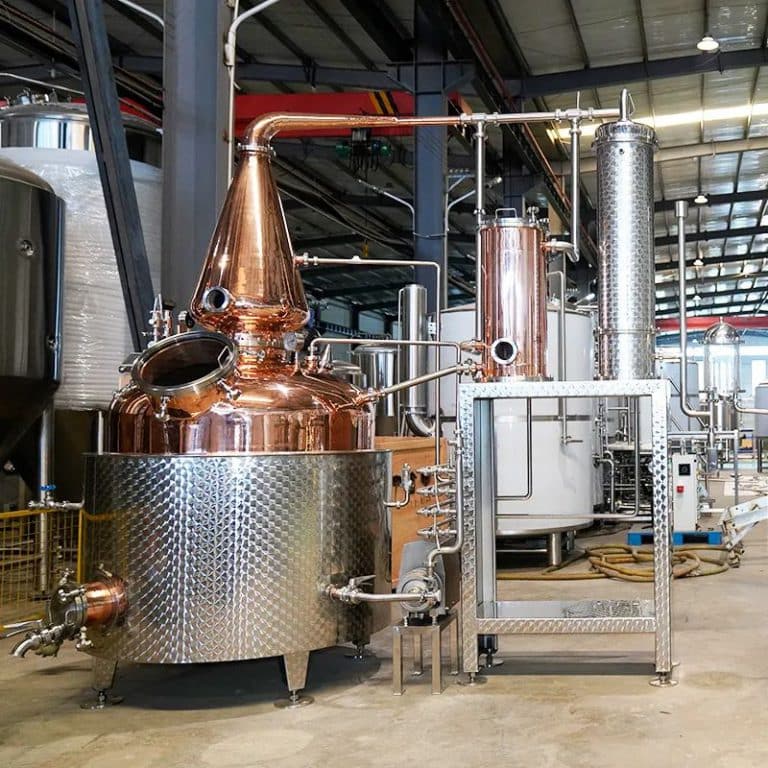

1000L Alcohol Distilling Equipment

A 1000L distillery system is a sizable setup suitable for larger-scale production, The 1000l distillery equipment consists of a pot made of copper, glass, and copper columns combined, a partial condenser, and a condenser, which are heated using steam or electricity. The distillery equipment is a single unit designed to meet and exceed the needs of start-up distilleries and can be used as advanced test distillery equipment for mature distilleries of whisky, gin, fruit brandy, rum, wine spirits.

Product details

A 1000L distillery equipment setup represents a larger-scale distillation system suitable for medium-sized craft distilleries or those looking to increase their production capacity while maintaining a certain level of artisanal quality and control.

Configuration

1.Still Pot

Actual volume 1250L, Working volume 1000L

Inner pot: red copper T2, thickness: 3m

Dished head: red copper T2, thickness: 3m

Jacketed: SUS304, thickness: 4mm

Insulated: 50mm, PU

Stirring motor: explosion-proof mixer 0.37KW/46rpm(EX)

Outer shell: SUS304, thickness: 2mm

Temperature control: PT100

Heating method: 2*10KW electric heating rods

With glass manhole, CIP cleaning ball, safety valve, sight light, steam trap, etc.

2.Still Column

Material: red copper T2, thickness: 3mm

Red copper tubes, each tray has bubble caps, and with CIP cleaning balls, Drain valve, thermometer

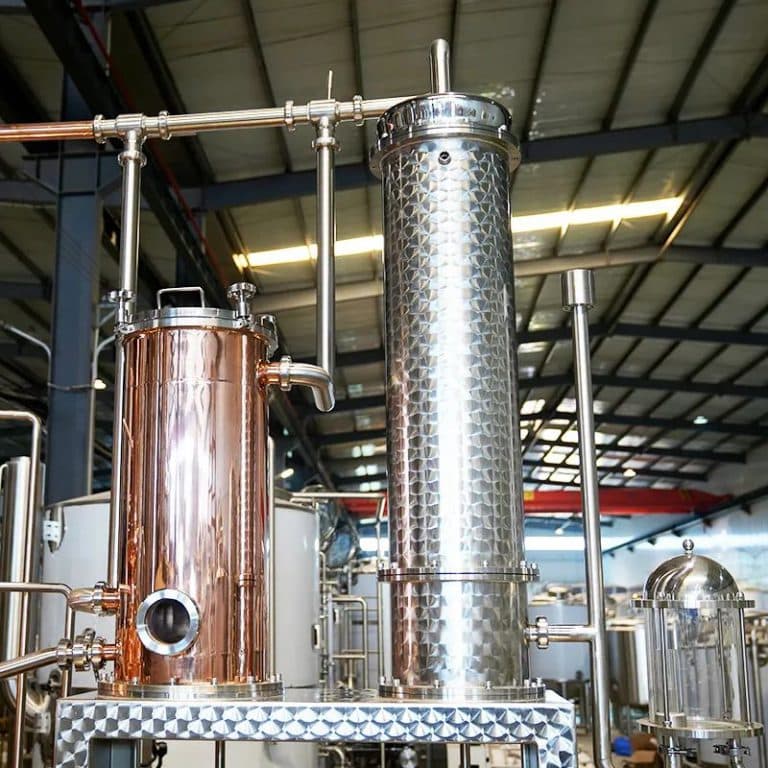

3.Dephlegmator

Material: Red copper T2, thickness:3mm

With cooling water inlet and outlet

4.Gin Basket

Material: SUS304

Size: 4″

Features: you can put plant spices, fumigate scented wine, such as gin

5.Condenser

Material: SUS304, thickness: 3mm

Size: 6″, 900mm

With cooling water inlet and outlet

6.CIP Pump

Category: Sanitary centrifugal pump

Power: 0.75KW (explosion-proof)

Flow rate: 3T/H, head 24m

Working medium: water

Working temperature: 10-100℃

Features: Can clean the distillation kettle, copper head, column, gin basket

Material: SUS304, thickness: 2mm

7.Multifunctional lockers

Control Box

Material: SUS304

Sight light, motor, CIP pump

The 1000L distillery equipment setup allows for a significant increase in production capacity compared to smaller systems. It offers greater productivity, larger batch sizes, and increased efficiency while still allowing for a hands-on approach to spirit production. This scale might suit medium-sized craft distilleries aiming to expand their offerings or increase their market presence.
